Application:These lamps are specifically designed for air and surface irradiation in HVAC systems. This products emits germicidal ultraviolet(UV-C) lights to help disinfect the cooling coil,drain pan,and internal surfaces of HVAC systems for improved indoor air quality.,also use for applications in the food processing and beverage industries as well as medical and laboratory sterilization applications.
Specification

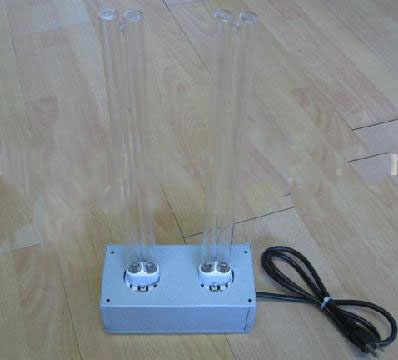

The Rejuvenators UV Air Cleaners are factory assembled and tested. They consist of a power cord, electronic ballast, quartz germicidal UV lamp and chassis, all constructed to withstand HVAC environments.
|
Lamp |
lamp dimensions (mm) | Lamp power (W) | Lamp current (mA) |
voltage at 50/60Hz (V) |
UV intensity @1m (µw/cm2) |
base | rated life | ||
| Max (A) | Max (B) | Max (C) | |||||||
| G5PL/L | 28 | 12 | 83 | 5 | 180 | 34 | 18 | GX23 | 1 year |
| G7PL/L | 28 | 12 | 115 | 7 | 180 | 47 | 22 | GX23 | |
| G9PL/L | 28 | 12 | 145 | 9 | 170 | 60 | 41 | GX23 | |
| G11PL/L | 28 | 12 | 214 | 11 | 160 | 89 | 50 | GX23 | |
| G13PL/L | 28 | 12 | 155 | 13 | 290 | 56 | 30 | GX23 | |
| G18PL/L | 40 | 17 | 225 | 18 | 370 | 60 | 66 | 2G11 | |
| G36PL/L | 40 | 17 | 415 | 36 | 430 | 105 | 114 | 2G11 | |
| G55PL/L | 40 | 17 | 535 | 55 | 540 | 103 | 145 | 2G11 | |
