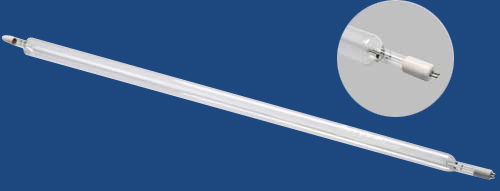

High Output (HO) germicidal lamps. These lamps yield twice the amount of ultraviolet (UV) output than
standard lamps of the same length. All common lamp sizes are available for purchase.
Our HO lamps provide the following benefits:
•DOUBLE THE UV OUTPUT OF STANDARD LAMPS
•REDUCED SYSTEM FOOTPRINT
•INCREASED EFFICIENCY AND CAPACITY
•COST SAVINGS THROUGH REDUCTION OF LAMP USAGE
High Output UVC Lamp Detail Specification.
| Model | Tube | BF-BF | Arc length | Power | Current | Voltage at 50/60HZ | Voltage at High Freq |
UV output at 254nm |
Rated Life |
||
|
|
mm | mm | mm | (W) | (A) | (V) | (V) | uW/cm2 | W | Normal | Long Life |
| GPH436T5L/HO | 15 | 436 | 360 | 48 | 800 | 70 | 60 | 120 | 13 | 9,000 | 13,000 |
| GPH436T5VH/HO | 15 | 436 | 360 | 48 | 800 | 70 | 60 | 120 | 13 | 9,000 | 13,000 |
| GHO36T5L | 15 | 842 | 755 | 87 | 800 | 125 | 110 | 260 | 28 | 9,000 | 13,000 |
| GHO36T5VH | 15 | 842 | 755 | 87 | 800 | 125 | 110 | 260 | 28 | 9,000 | 13,000 |
| GPH846T5L/HO | 15 | 846 | 767 | 90 | 800 | 127 | 113 | 265 | 29 | 9,000 | 13,000 |
| GPH846T5VH/HO | 15 | 846 | 767 | 90 | 800 | 127 | 113 | 265 | 29 | 9,000 | 13,000 |
| GPH893T5L/HO | 15 | 893 | 815 | 95 | 800 | 135 | 120 | 270 | 30 | 9,000 | 13,000 |
| GPH893T5VH/HO | 15 | 893 | 815 | 95 | 800 | 135 | 120 | 270 | 30 | 9,000 | 13,000 |
| GHO64T5L | 15 | 1554 | 1421 | 155 | 800 | 220 | 195 | 380 | 45 | 9,000 | 13,000 |
| GHO64T5VH | 15 | 1554 | 1421 | 155 | 800 | 220 | 195 | 380 | 45 | 9,000 | 13,000 |
| GPH1149T12L/HO | 38 | 1149 | 985 | 90 | 1250 | 90 | 75 | 325 | 35 | 10,000 | 13,000 |
| GPH1149T12VH/HO | 38 | 1149 | 985 | 90 | 1250 | 90 | 75 | 325 | 35 | 10,000 | 13,000 |
