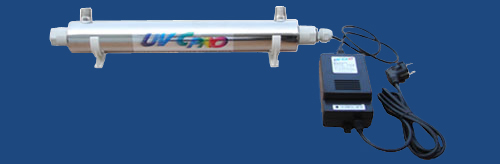

Water Treatment UV System Specification:
1.For clean water: 5.0GPM/20Lpm
For DI or RO water: 6.0GPM/24Lpm
2.UV germicidal lamp: 24W*1 (Model: G842T5L/4P OR G842T5L/2P)
3.Ballast: 24W*1
4.Dimension: @64mm*512mm
5.Voltage: 100V-120V,220V-240V,50/60HZ
6.Inlet/Outletsize: 1/2''NPT
7.Max. workingpressure: 125PSI
8.Chamber/Housing:304 stainless steel
9.Quartz Sleeve: SQ230484
10.Lamp failure warning system: LED Indicator
11.Lamp average life: 9,000 hours
